Unitree R1

Price from $5,900

Ultra-lightweight, fully customizable

Watch Video →

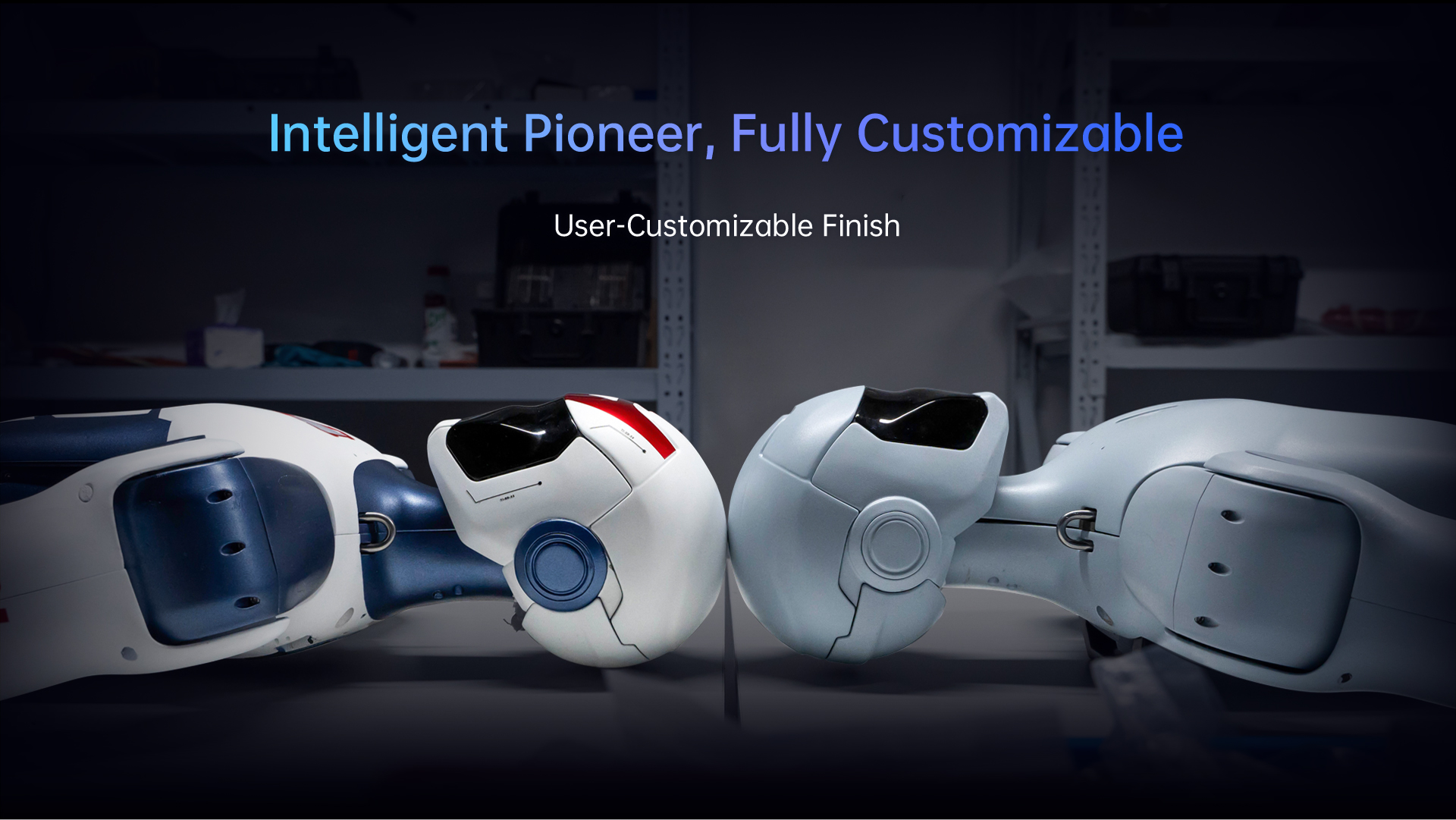

Intelligent pioneer, fully customizable

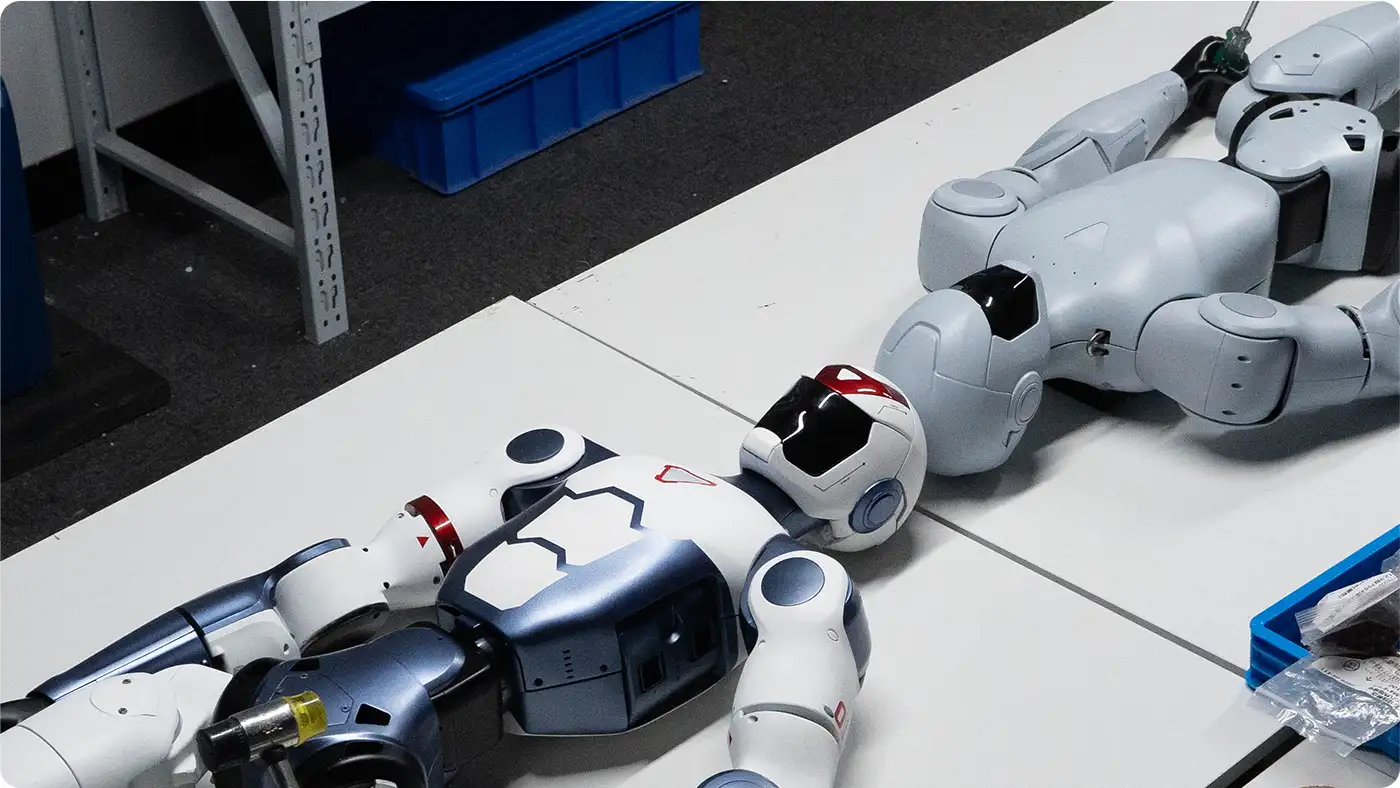

User-customizable finish

Making it easier for humanoid robots to step into the real world

One thought unlocks thousands looks

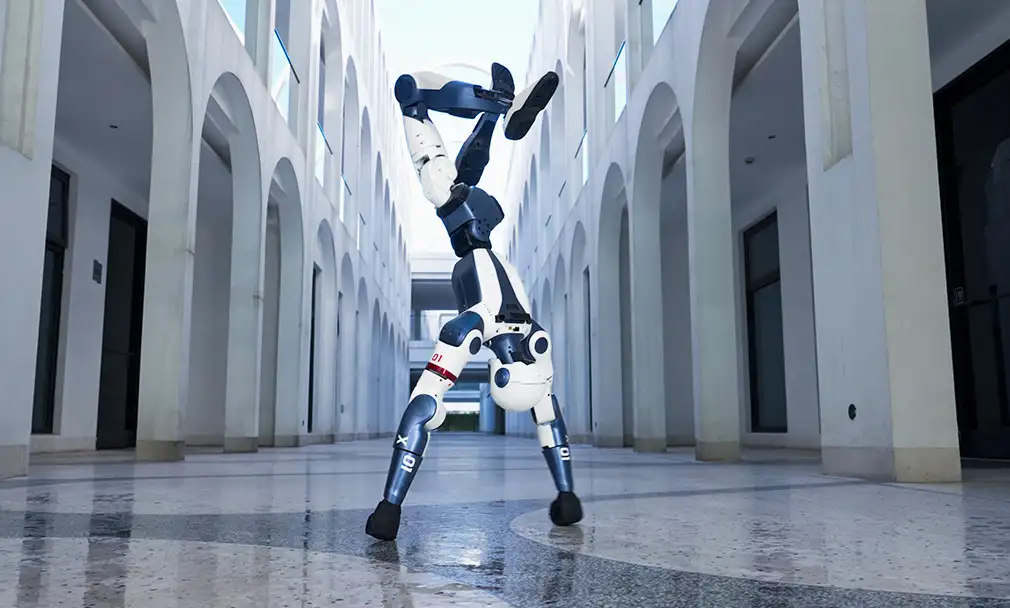

Transform with freedom

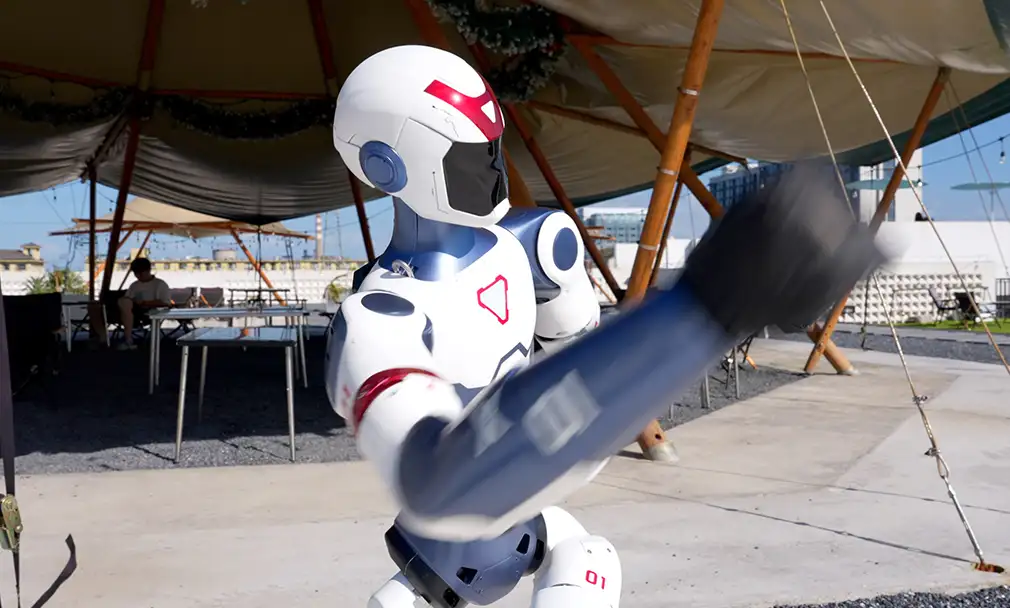

Abundant power

Delivered in an instant

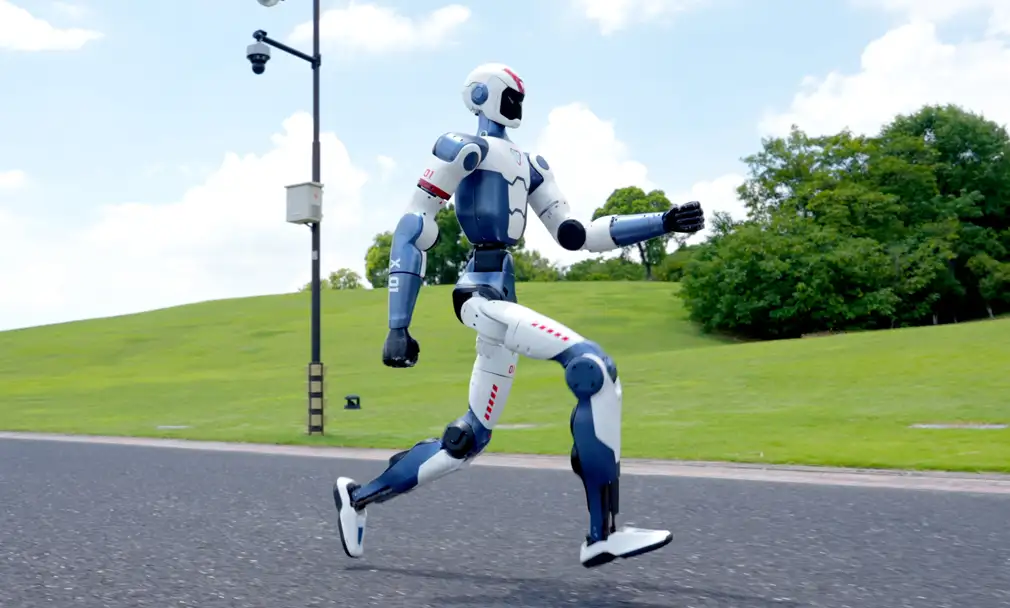

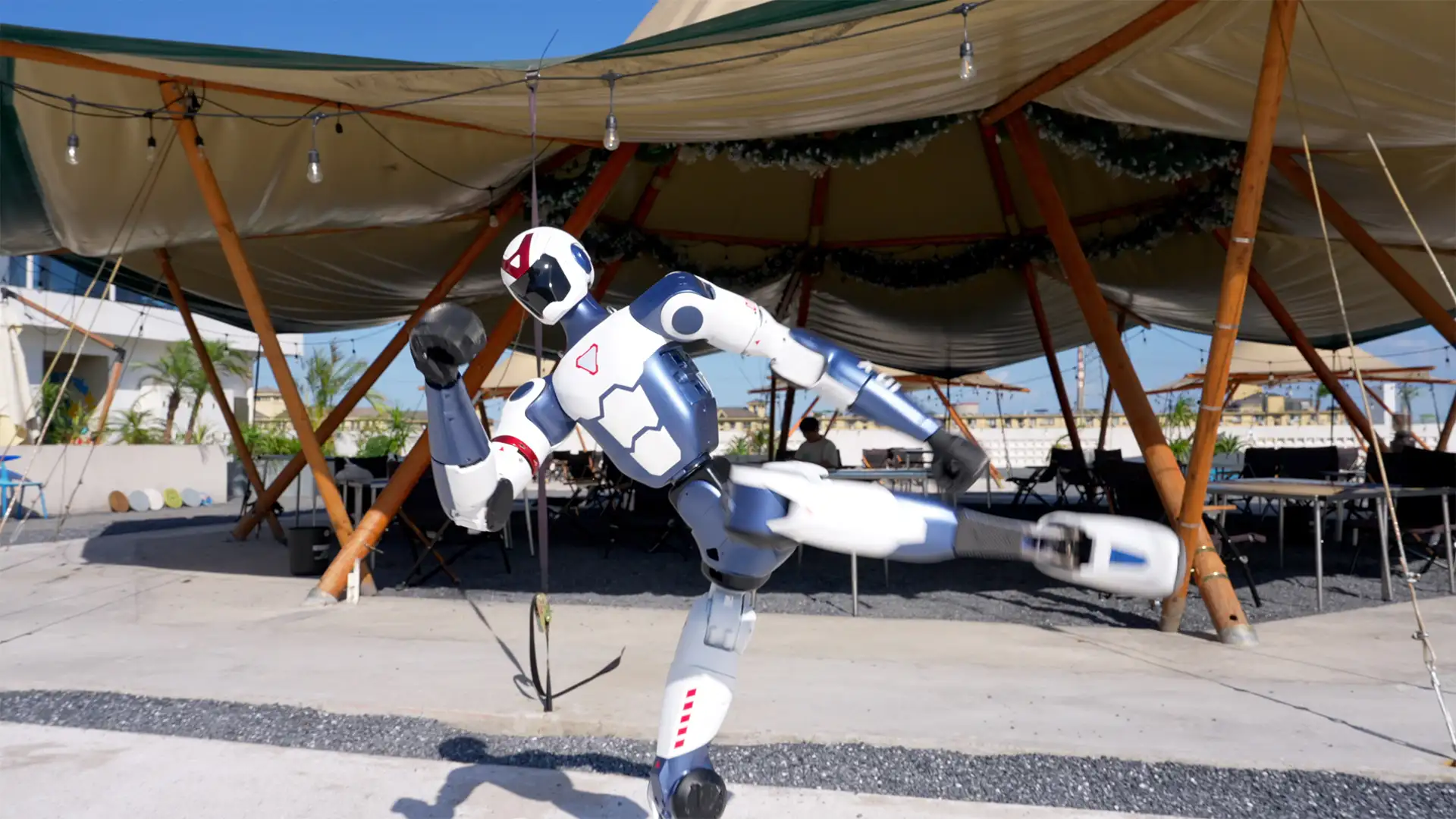

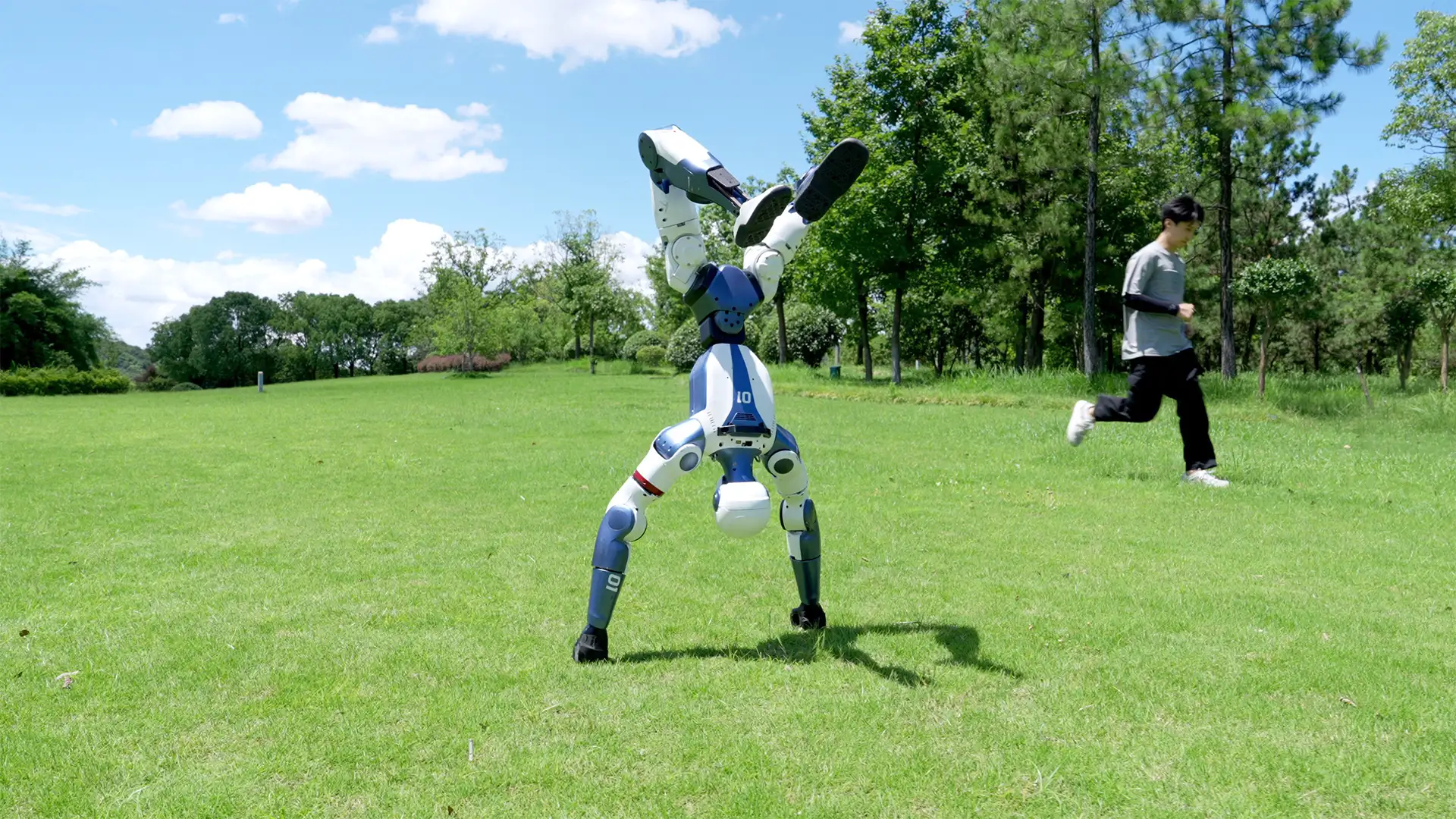

Effortless agility

Navigating without limits

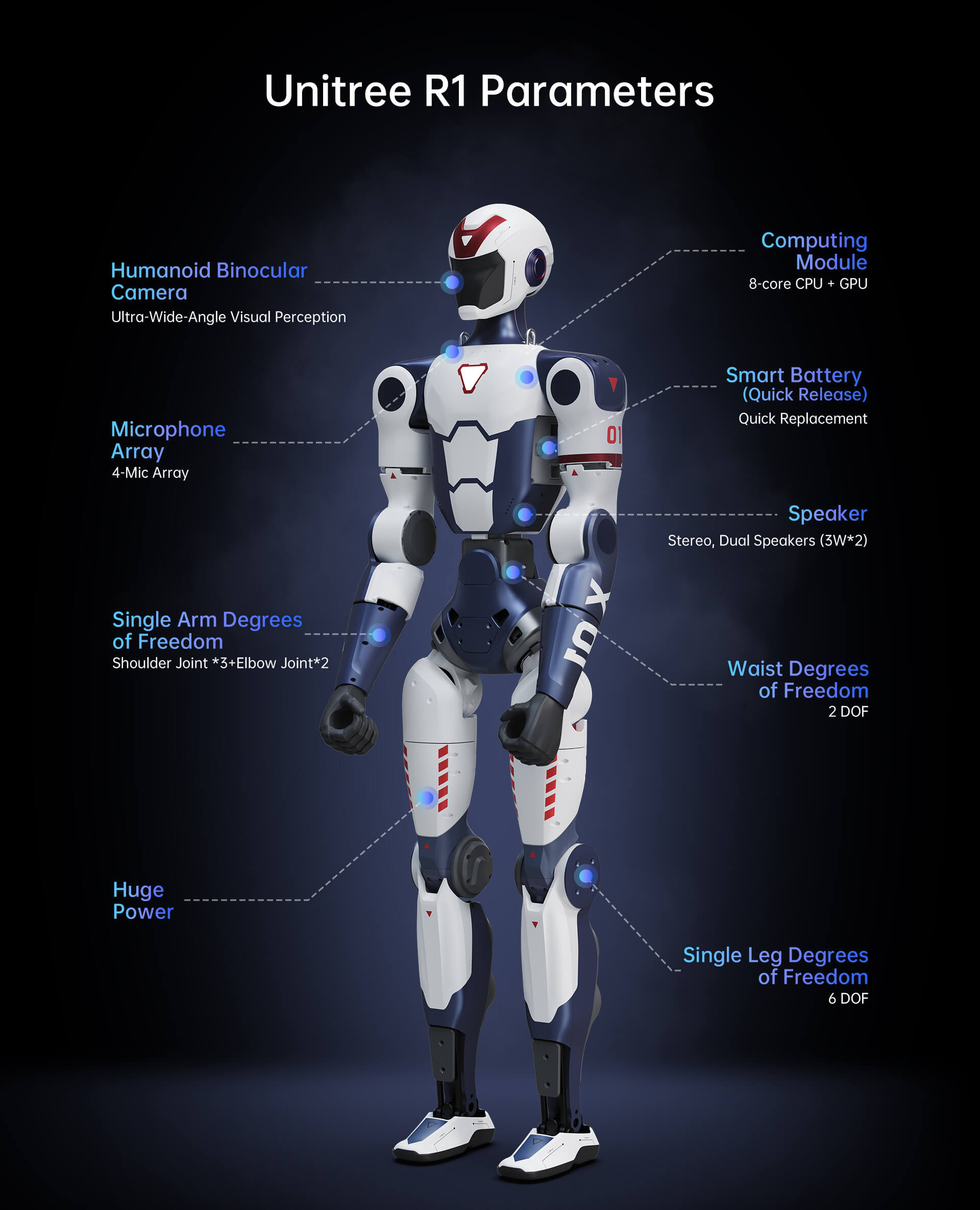

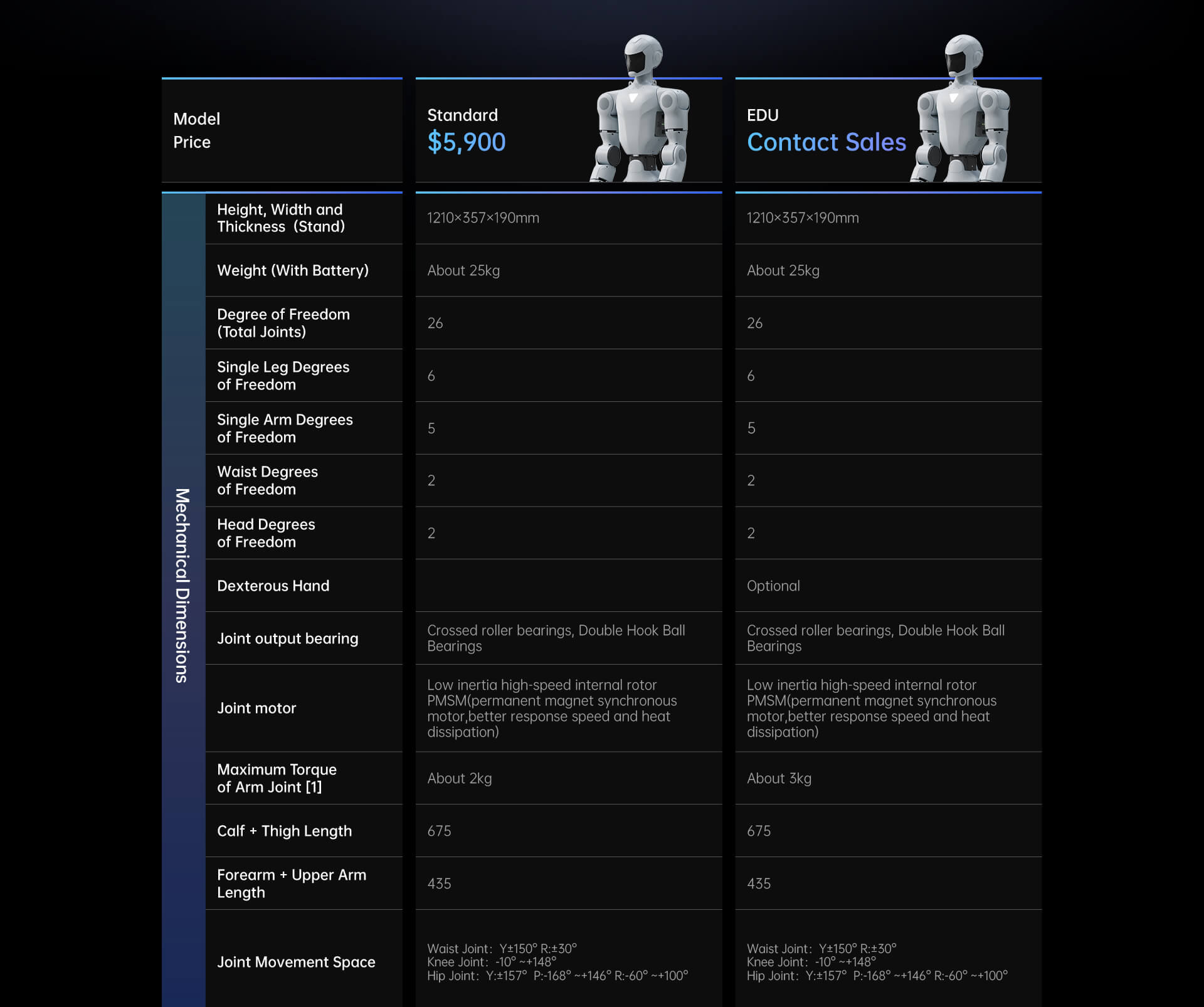

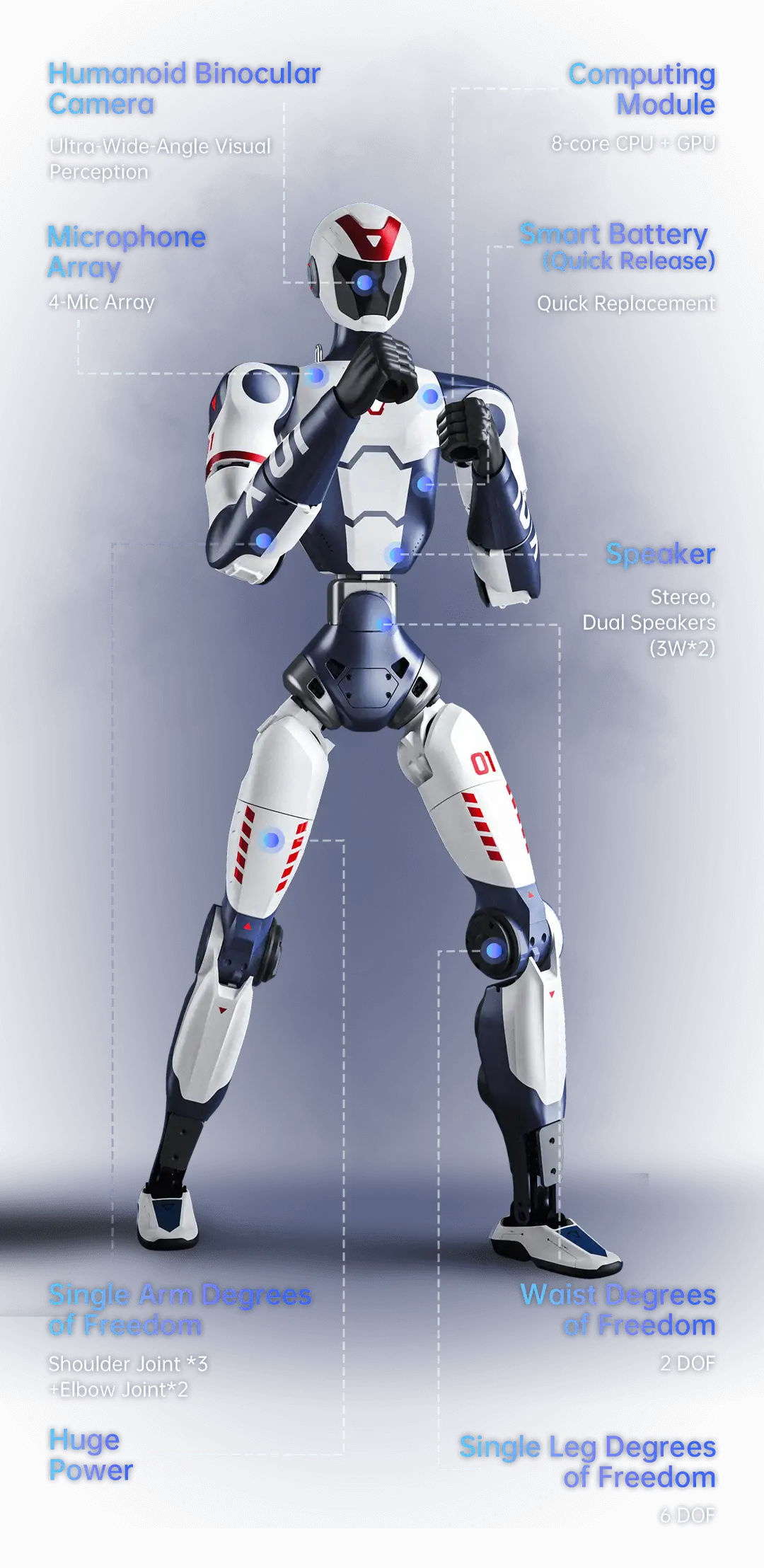

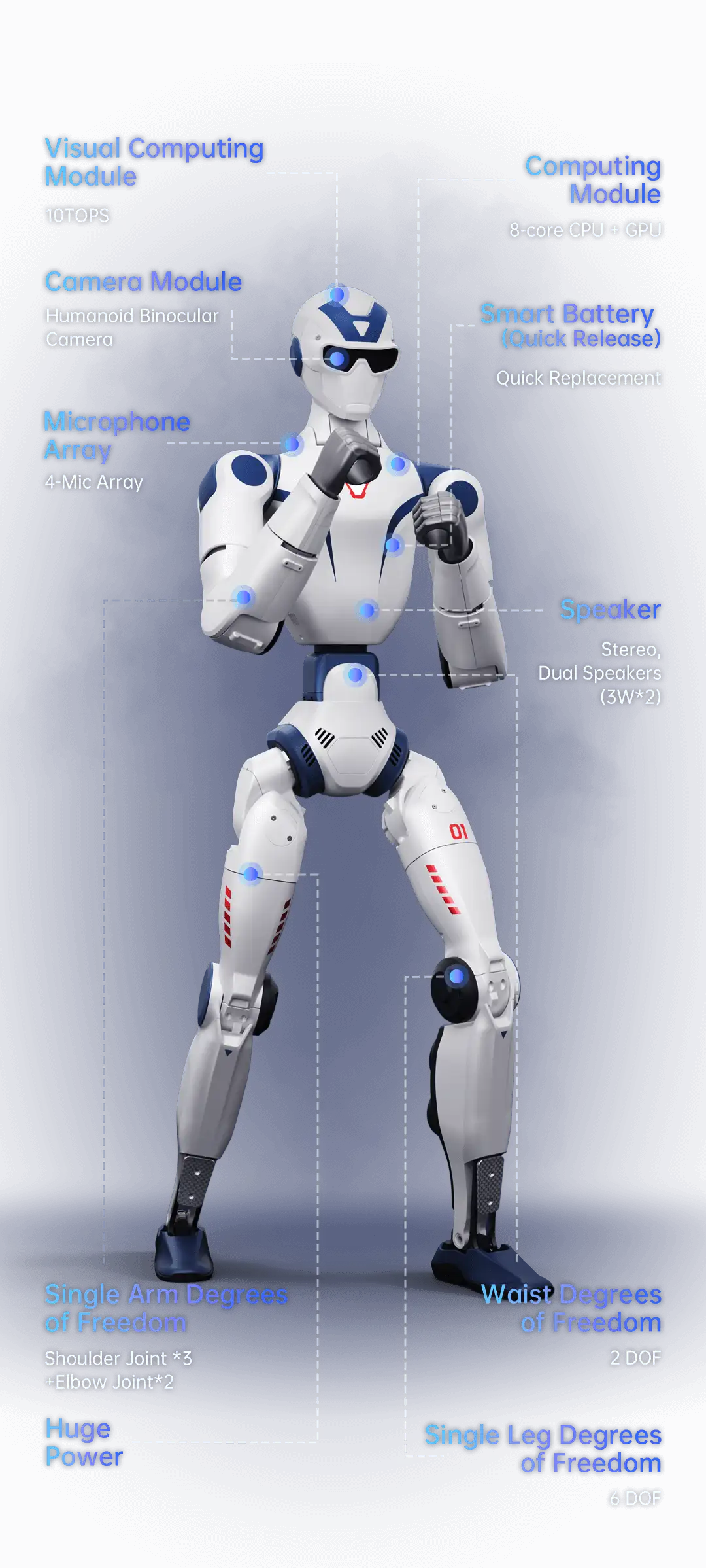

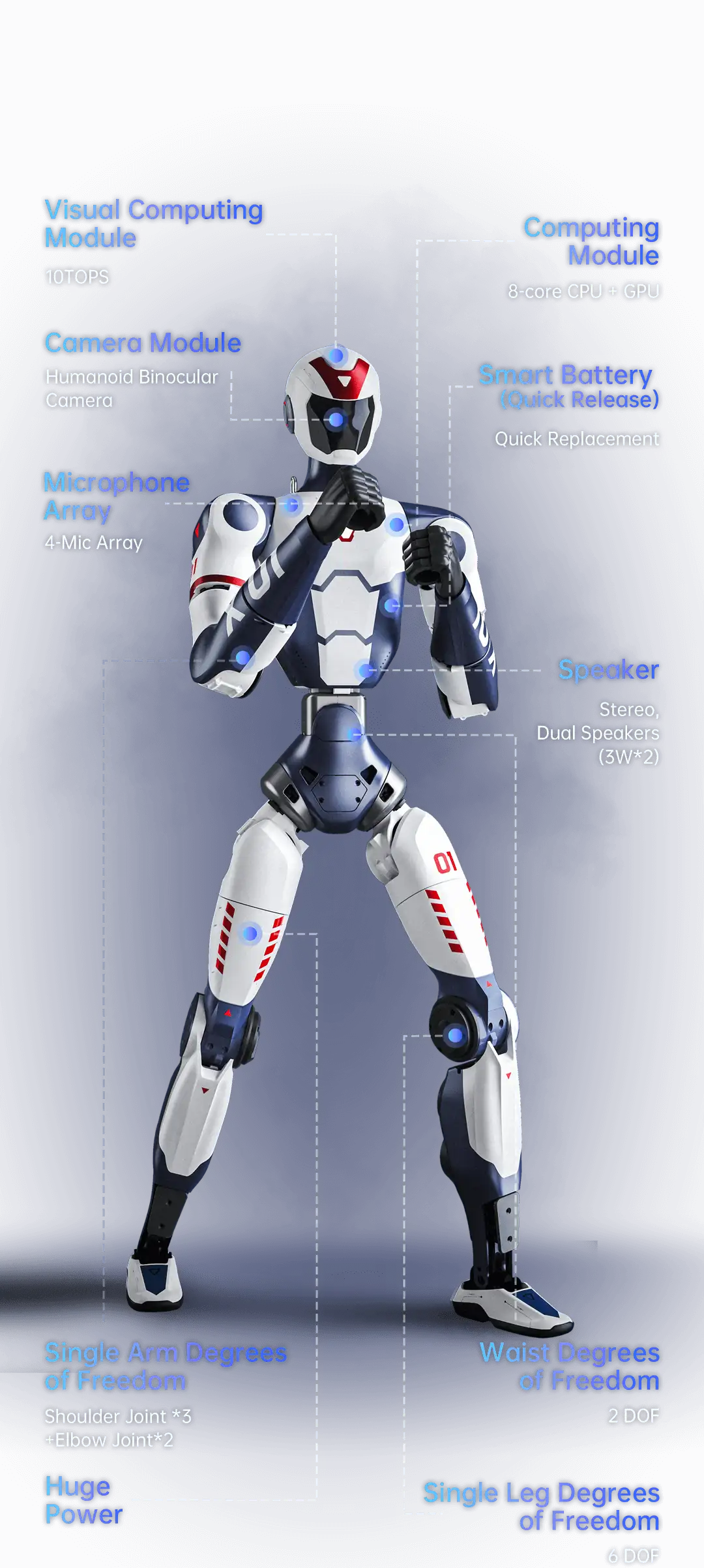

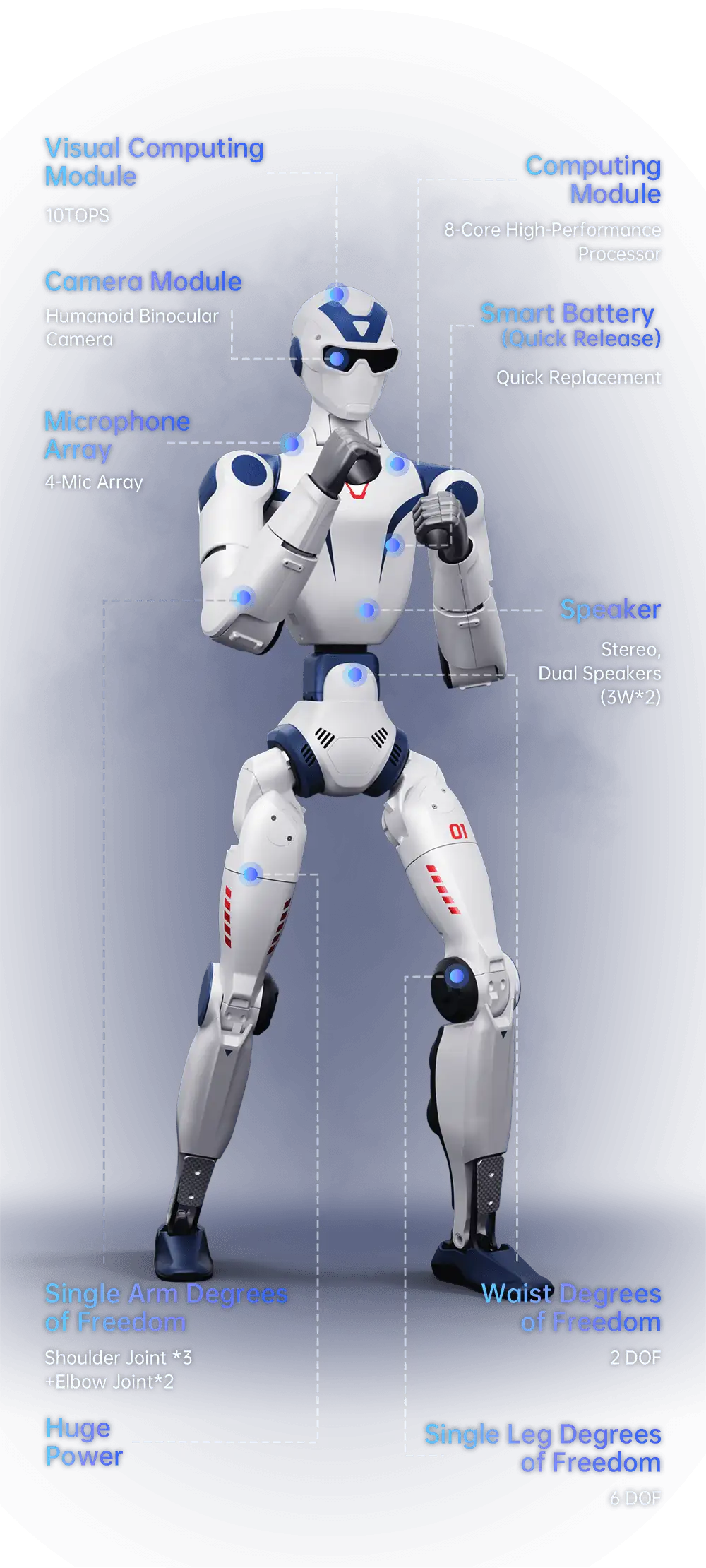

Unitree R1 Parameter

  • Model

    Price（Tax and Shipping cost excluded）

  • R1

    $5,900

  • R1 EDU

    Contact Sales

Mechanical Dimensions

  • Height, Width and Thickness（Stand）

    1210x357x190mm

    1210x357x190mm

  • Weight (With Battery)

    About 25kg

    About 25kg

  • Degree of Freedom(Total Joints)

    24

    24-40

  • Single Leg Degrees of Freedom

    6

    6

  • Single Arm Degrees of Freedom

    5

    5

  • Waist Degrees of Freedom

    2

    2

  • Head Degrees of Freedom

    /

    2

  • Dexterous Hand

    /

    Optional

  • Joint output bearing

    Crossed roller bearings, Double Hook Ball Bearings

    Crossed roller bearings, Double Hook Ball Bearings

  • Joint motor

    Low inertia high-speed internal rotor PMSM(permanent magnet synchronous motor,better response speed and heat dissipation)

    Low inertia high-speed internal rotor PMSM(permanent magnet synchronous motor,better response speed and heat dissipation)

  • Maximum Torque of Arm Joint【1】

    约 2kg

    About 2kg

  • Calf + Thigh Length

    675

    675

  • Forearm + Upper Arm Length

    435

    435

  •  Joint Movement Space

    Waist Joint：Y±150° R±30°

    Knee Joint：-10°~+148°

    Hip Joint：Y:±157° P:-168° ~+146° R:-60° ~+100°

    Waist Joint：Y±150° R±30°

    Knee Joint：-10°~+148°

    Hip Joint：Y:±157° P:-168° ~+146° R:-60° ~+100°

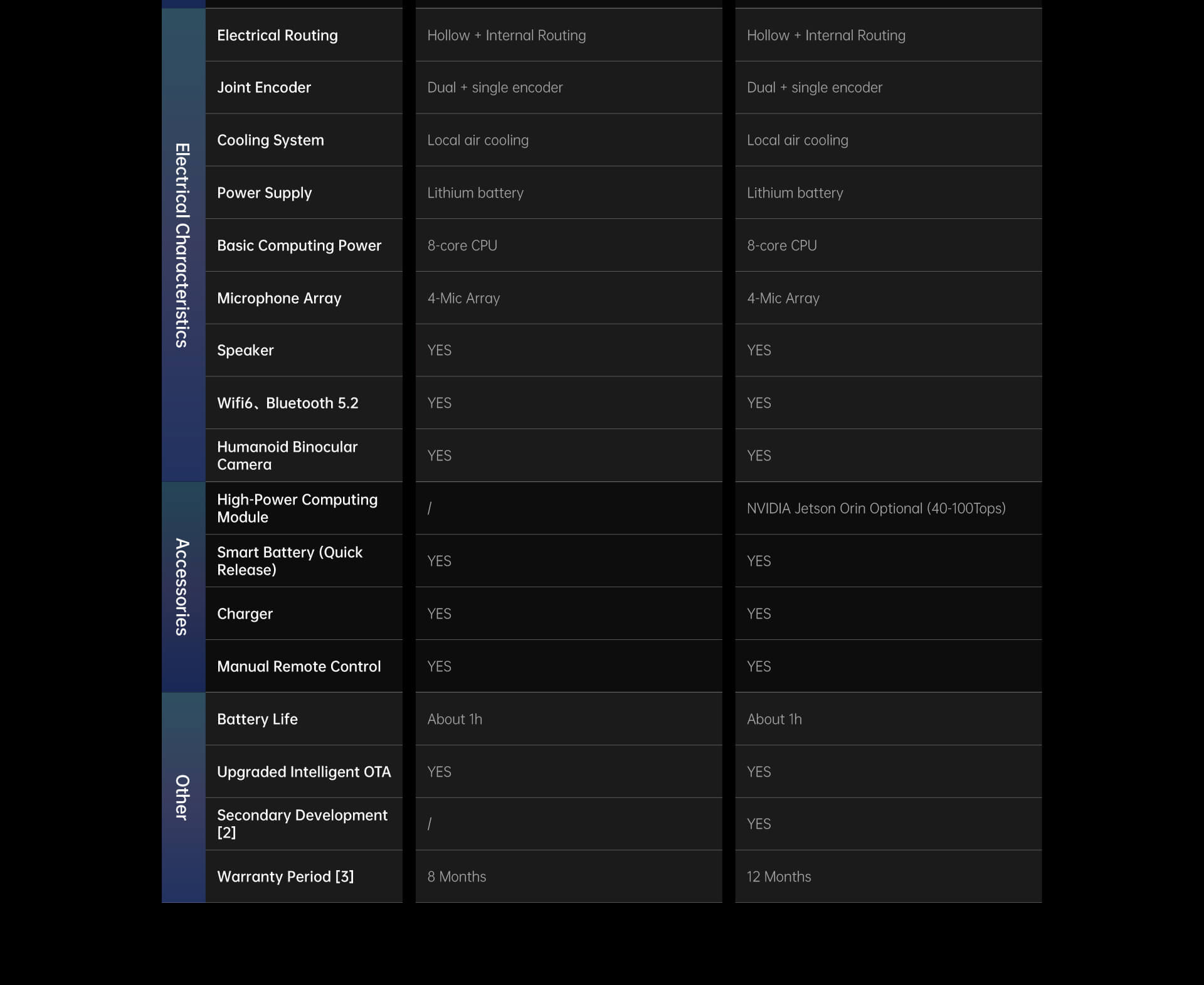

Electrical Characteristics

  • Electrical Routing

    Hollow + Internal Routing

    Hollow + Internal Routing

  • Joint Encoder

    Dual + single encoder

    Dual + single encoder

  • Cooling System

    Local air cooling

    Local air cooling

  • Power Supply

    Lithium battery

    Lithium battery

  • Basic Computing Power

    8-core high-performance CPU

    8-core high-performance CPU

  • Microphone Array

    4-Mic Array

    4-Mic Array

  • Speaker

    YES

    YES

  • WiFi 6 、Bluetooth 5.2

    YES

    YES

  • Humanoid Binocular Camera

    YES

    YES

Accessories

  • High-Power Computing Module

    /

    NVIDIA Jetson Orin Optional (40-100 Tops)

  • Smart Battery (Quick Release)

    YES

    YES

  • Charger

    YES

    YES

  • Manual Controller

    YES

    YES

Other

  • Battery Life

    About 1h

    About 1h

  • Upgraded Intelligent OTA

    YES

    YES

  • Secondary Development【2】

    /

    YES

  • Warranty Period【3】

    8 Months

    12 Months

[1]

The maximum load of the arm varies greatly under different arm extension postures.

[2]

For more information, please read the secondary development manual.

[3]

For more detailed warranty terms, please read the product warranty brochure.

[4]

The above parameters may vary in different scenarios and configurations, please subject to actual situation.

[5]

The humanoid robot has a complex structure and extremely powerful power. Users are asked to keep a sufficient safe distance between the humanoid robot and people.Please use with caution

[6]

If any change in the appearance of the product, please refer to the actual product.

[7]

Some sample functions on this page are still being developed and tested, and will be opened to users in the future.

[8]

Currently, the global humanoid robot industry is in the early stages of exploration. Individual users are strongly advised to thoroughly understand the limitations of humanoid robots before making a purchase.

This product is a civilian robot. We kindly request that all users refrain from making any dangerous modifications or using the robot in a hazardous manner.

Please visit Unitree Robotics Website for more related terms and policies, and comply with local laws and regulations.
